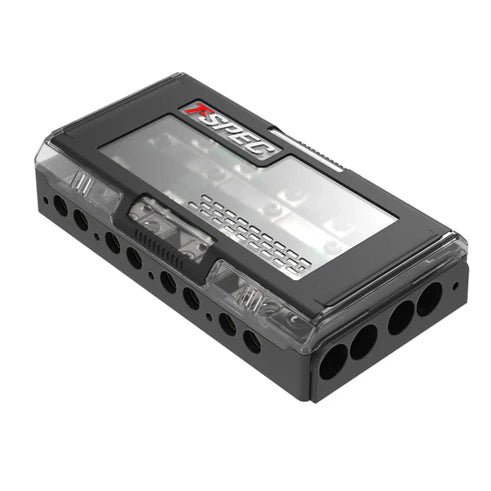

T-Spec VBDB4 Dual Input 4-Way Power and Ground Distribution Block
The T-Spec VBDB4 is a premium distribution block designed to efficiently manage your vehicle's power and ground connections. Engineered with high-quality materials and innovative features, it ensures optimal performance for your car audio system.
Product Sheet (PDF)
Key Features:
-
Dual 1/0 AWG Inputs: Accommodates two 1/0 gauge positive and two 1/0 gauge negative inputs for robust connectivity.
-
Four 4 AWG Outputs: Provides four fused 4-gauge positive and four 4-gauge ground outputs, facilitating multiple component connections.
-
Built-in Amplification Relay: Enhances the current rating of the amplifier turn-on wire, distributing it across all four outputs for reliable performance.
-
Blown Fuse Indicator (BFI): Each circuit features an LED indicator that illuminates when a fuse needs replacement, simplifying maintenance.
-

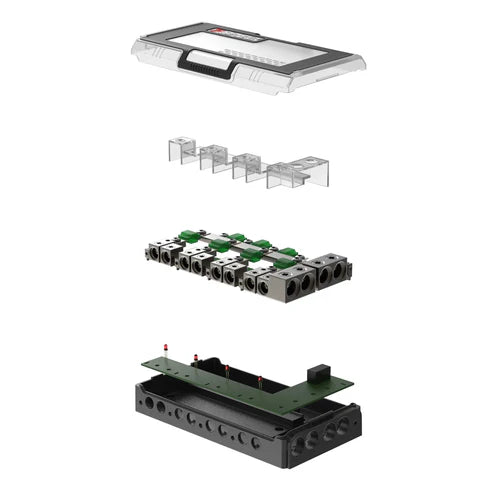

High-Quality Construction: Constructed with 5mm thick solid brass bus bars and a satin gunmetal finish for maximum conductivity and durability.
-

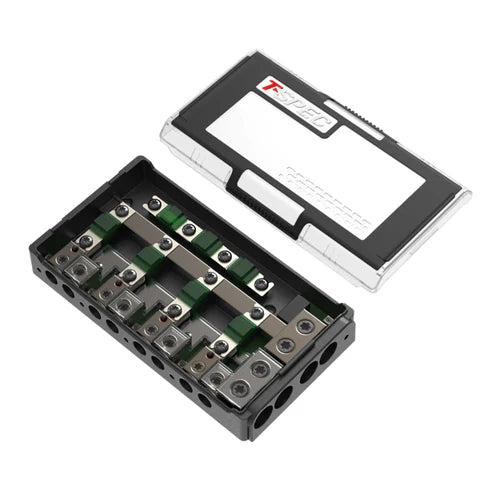

Anti-Short Sub-Cover: Isolates the ground bar and terminals to prevent short circuits, enhancing safety.
-
Soft-Touch Cover: TPE-wrapped cover offers a sleek appearance and easy handling during installation.
Specifications:
| Inputs |
Dual 1/0 AWG positive and negative |
| Outputs |
Four 4 AWG positive and ground |
| Fuse Type |
MANL (Mini-ANL) |
| Material |
5mm solid brass with satin gunmetal finish |
| Dimensions |
7.29" (W) x 1.52" (H) x 3.97" (D) |
| Additional Features |
Blown Fuse Indicator LEDs, built-in amplification relay, anti-short sub-cover |
What's Included:
- T-Spec VBDB4 Distribution Block
- Three 60A MANL Spare Fuses
- Soft-Touch TPE Wrapped Cover
- Installation Hardware
- User Manual
Disclaimer: Ensure compatibility with your vehicle's electrical system before installation. Professional installation is recommended to achieve optimal performance. The manufacturer and seller are not responsible for damages resulting from improper installation or use.
