The BlackVue B-130X Power Magic Ultra Battery is a high-capacity battery pack designed to provide extended power to your dashcam during Parking Mode, ensuring continuous surveillance without draining your vehicle's battery.
Key Features:
High Capacity: With a capacity of 12.8V / 7,500mAh / 96Wh, the B-130X offers up to 30 hours of power for a single-channel dashcam and approximately 19 hours for a dual-channel setup.
Fast Charging: Achieves a full charge in approximately 50 minutes when hardwired and about 90 minutes when connected via the cigarette lighter socket.
Wireless Monitoring: Connects to the BlackVue App via Bluetooth, allowing you to monitor battery status, including charge percentage and remaining usage time.

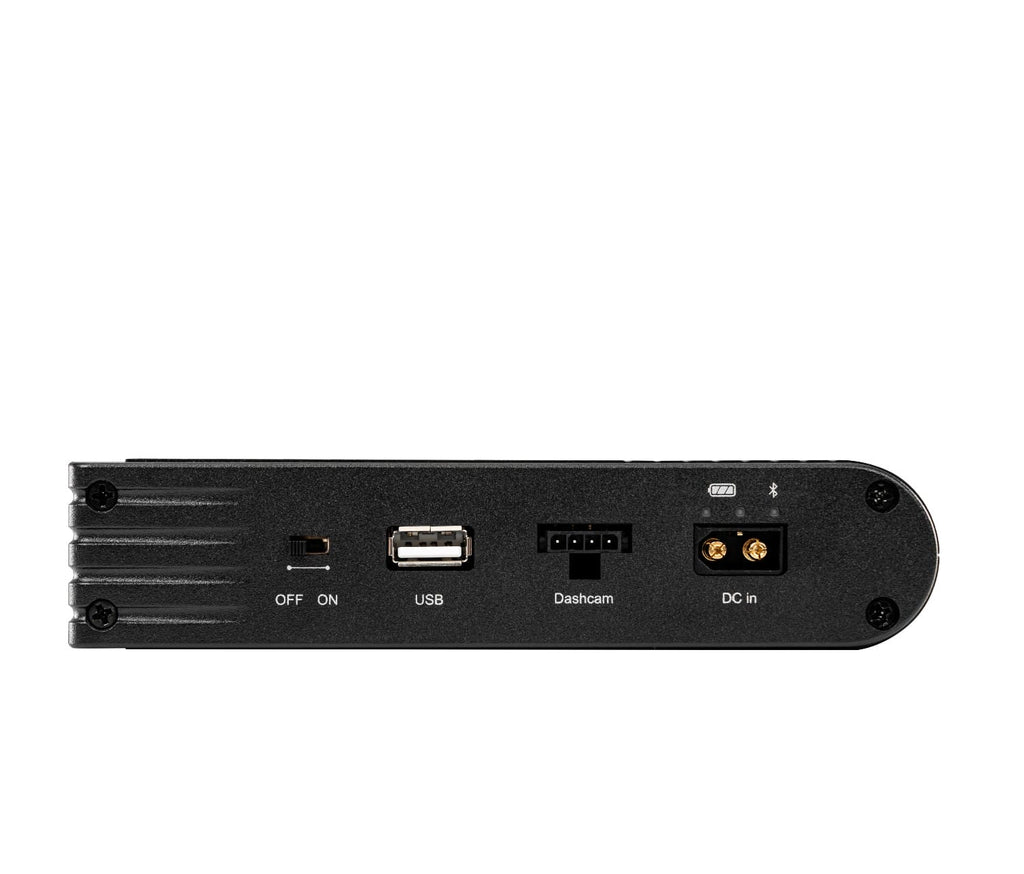

Dual Installation Options: Supports both simple installation via the cigarette lighter socket and hardwired installation for faster charging times.
12V/24V Compatibility: Suitable for use in a wide range of vehicles, including commercial and heavy-duty models.
USB Power Output: Equipped with a 5V USB (2A max) port to charge accessories such as smartphones or Wi-Fi hotspots.
Specifications:
Model Name
Power Magic Ultra Battery B-130X
Battery Cell Type
Lithium Iron Phosphate (LiFePO4)
Input Voltage / Current
12V System: 11V–18V / 7.2A (max) via Cigarette Lighter Plug; 11V–18V / 13.0A (max) when Hardwired 24V System: 22.5V–30V / 3.6A (max) via Cigarette Lighter Plug; 22.5V–30V / 6.4A (max) when Hardwired
Charging Voltage / Current
14.2V / 5A via Cigarette Lighter Plug; 14.2V / 9A when Hardwired
Charging Time
Approx. 90 minutes via Cigarette Lighter Plug; Approx. 50 minutes when Hardwired
Operating Temperature
Charging: 0°C to 45°C (32°F to 113°F) Discharging: -10°C to 60°C (14°F to 140°F)
Storage Temperature
-20°C to 45°C (-4°F to 113°F)
High Temperature Cut-Off
Approx. 80°C (176°F)
Dimensions
Length: 206 mm Width: 152.7 mm Height: 33.6 mm
Weight
1.5 kg
What's Included:
Power Magic Ultra Battery B-130X Unit
Cigarette Lighter Power Cable
Hardwiring Power Cable
Output Cable to Dashcam
Mounting Brackets and Screws
Double-Sided Tape
User Manual
Enhance your vehicle's surveillance capabilities with the BlackVue B-130X Power Magic Ultra Battery, providing reliable and extended power for your dashcam during Parking Mode.
