Car Audio Fuses: Why They Matter and How to Choose the Right One
Fuses are a crucial but often overlooked component in car audio systems. They protect your amplifier, wiring, and vehicle’s electrical system from shorts, overloads, and potential fires. Choosing the right fuse size and type is essential to ensure your system runs safely and efficiently.
What Does a Fuse Do in a Car Audio System?
A fuse acts as a safety device that interrupts electrical flow if the current exceeds a safe limit. If a short circuit or excessive power draw occurs, the fuse blows, cutting power before damage can happen to your amplifier, wiring, or battery.
Why Are Fuses Important?
- Prevents electrical fires caused by short circuits.
- Protects your amplifier from excessive power draw.
- Ensures your wiring doesn’t overheat, which could cause melting or burning.
Types of Car Audio Fuses
1. ANL Fuses
- Best for high-power systems.
- Commonly used in amplifier power distribution.
- Requires ANL fuse holders for installation.
2. Mini ANL Fuses
- Smaller version of ANL fuses, used in mid-to-high power systems.
- Typically rated between 40A–150A.
3. AGU Fuses
- Cylindrical glass fuses, used in older or low-power setups.
- Typically rated 30A–100A.
- Less reliable for high-power systems due to potential connection failure over time.
4. Blade (ATO/ATC) Fuses
- Used in amplifier distribution blocks and some factory fuse boxes.
- Typically rated 5A–60A.
- Good for smaller amps, speaker crossovers, and accessories.
How to Choose the Right Fuse Size
The fuse should be rated to handle your amplifier’s total current draw without allowing excessive current that could damage the wiring. The correct size depends on wire gauge and total wattage.
Recommended Fuse Ratings by Power and Wire Size:
| Amplifier Power (RMS) | Recommended Fuse Size (A) | Wire Gauge (AWG) |
|---|---|---|
| 300W - 500W | 40A - 60A | 8 AWG |
| 600W - 1000W | 80A - 100A | 4 AWG |
| 1200W - 2000W | 150A - 200A | 2 AWG |
| 2500W+ | 250A+ | 1/0 AWG |
Note: If you are using multiple amplifiers, use a fuse block with multiple fuses to protect each amplifier separately.
Common Fuse Mistakes to Avoid
- Using a Fuse That’s Too Small – Your system will keep blowing fuses unnecessarily.
- Using a Fuse That’s Too Large – This defeats the purpose of having a fuse, increasing the risk of fire.
- Not Using a Fuse at All – Running an amplifier without a fuse is extremely dangerous and can cause wiring fires or battery damage.

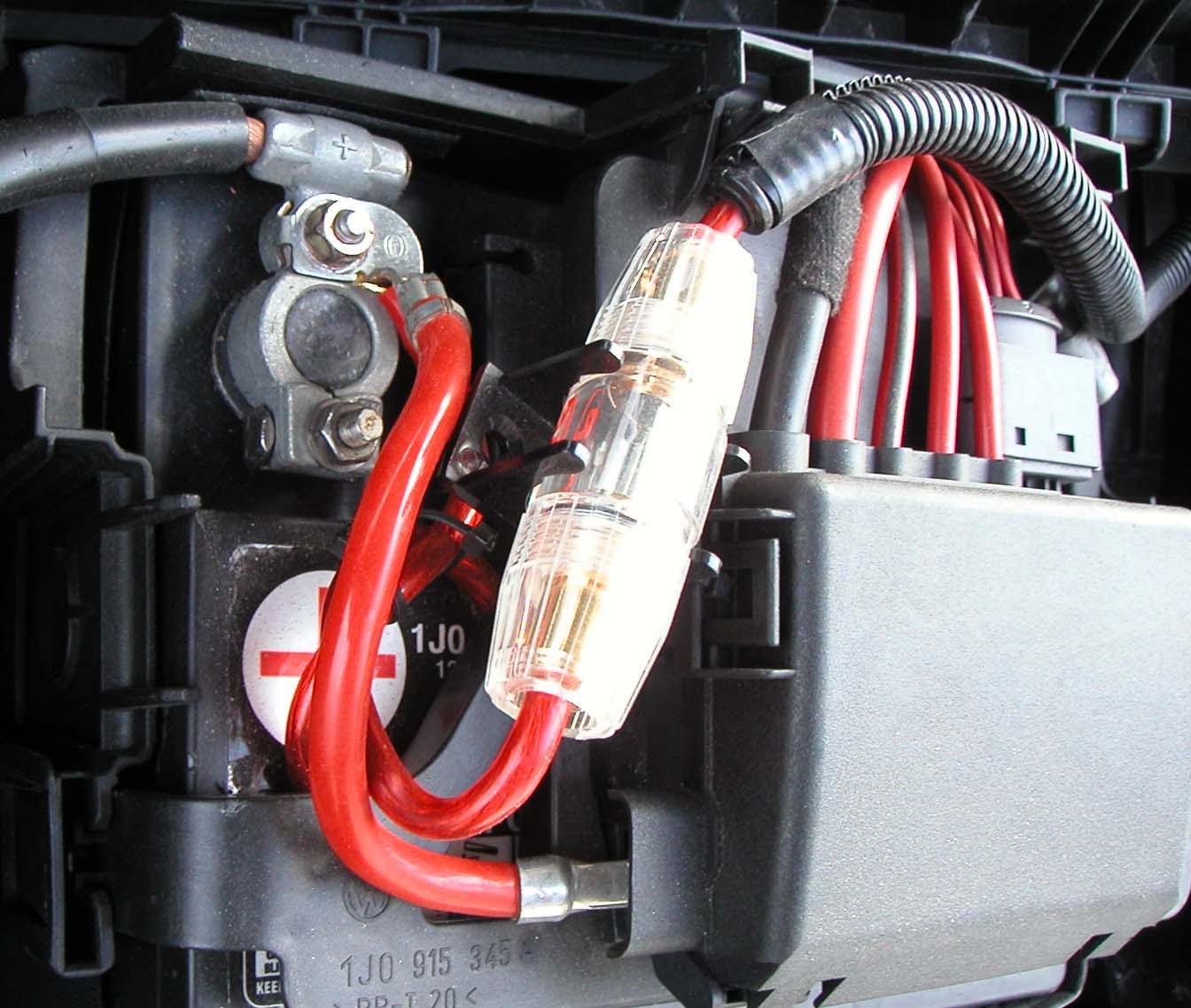

- Placing the Fuse Too Far from the Battery – Always install the main fuse within 12 inches of the battery to protect the entire power wire.
Where to Install Fuses in a Car Audio System
- At the Battery – The main fuse must be close to the battery to protect the power wire.
- Before a Distribution Block – If running multiple amps, a fuse block distributes power safely.
- On the Amplifier (If Required) – Some amps have built-in fuses, but you still need an inline fuse at the battery.
Conclusion
Fuses are essential for protecting your car audio system from electrical damage and fire hazards. Always choose the right type and size, install them properly near the battery, and make sure they match your amplifier’s power requirements. A properly fused system runs safer, lasts longer, and performs better.
